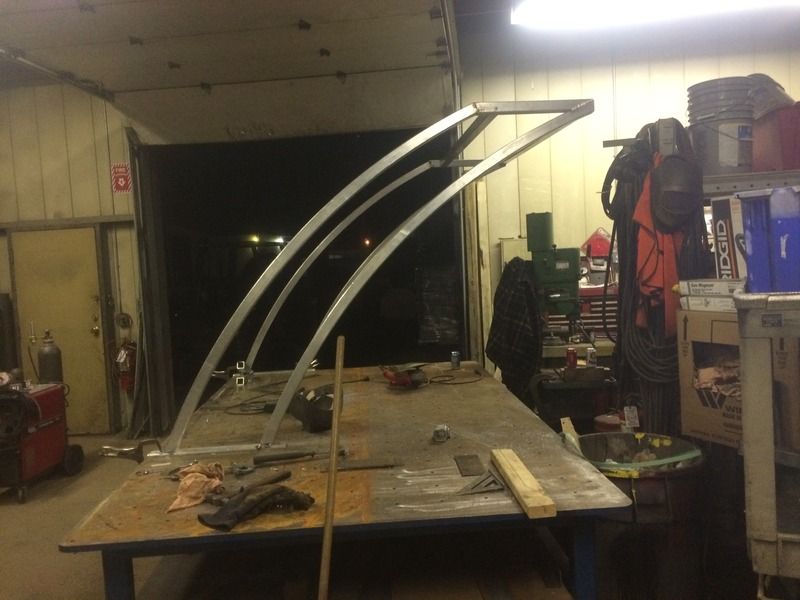

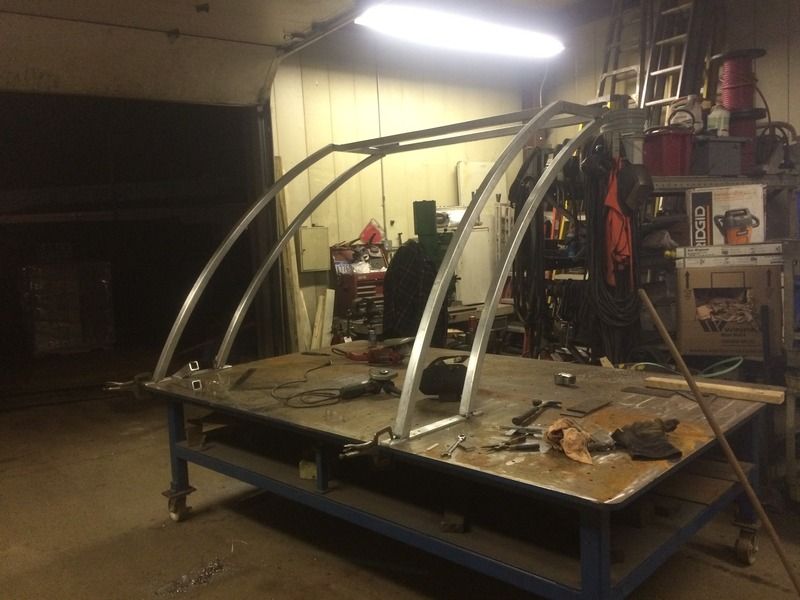

Side's mocked up and braced
http://i2.photobucket.com/albums/y16...6/IMG_1989.jpg
http://i2.photobucket.com/albums/y16...6/IMG_1990.jpg

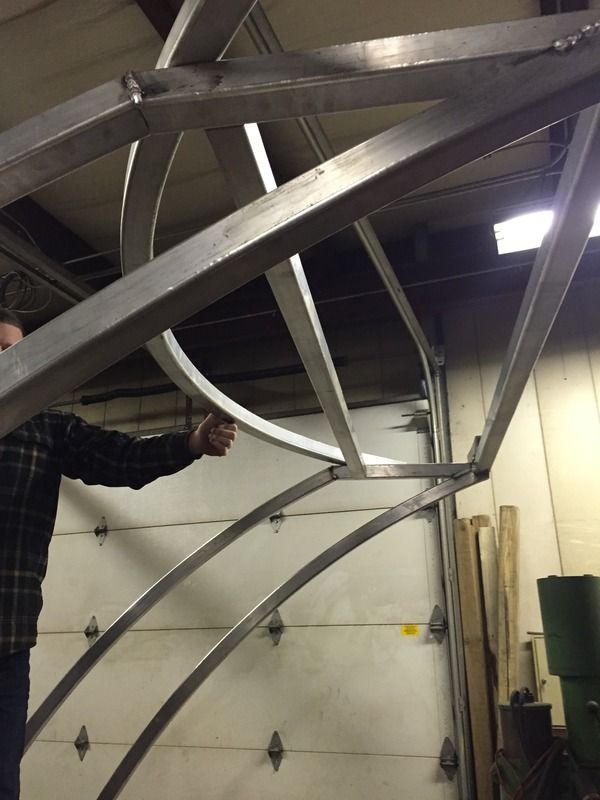

View of the top assembly. The forward (Rightmost) tube we wish we would have had curved like the back. Oh well, next time.
http://i2.photobucket.com/albums/y16...6/IMG_1996.jpg

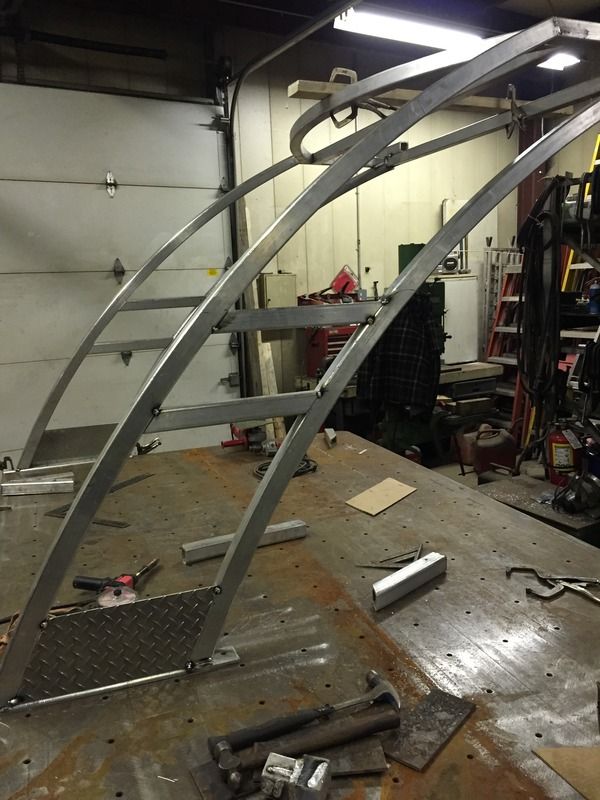

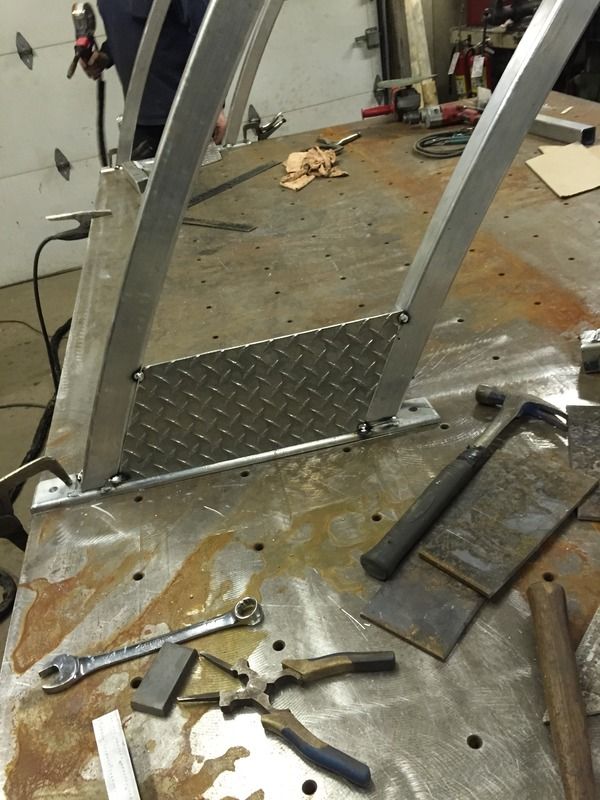

Aluminum Tread Plate for looks and support
http://i2.photobucket.com/albums/y16...6/IMG_1997.jpg
http://i2.photobucket.com/albums/y16...6/IMG_1998.jpg
http://i2.photobucket.com/albums/y16...6/IMG_1999.jpg
http://i2.photobucket.com/albums/y16...6/IMG_2002.jpg

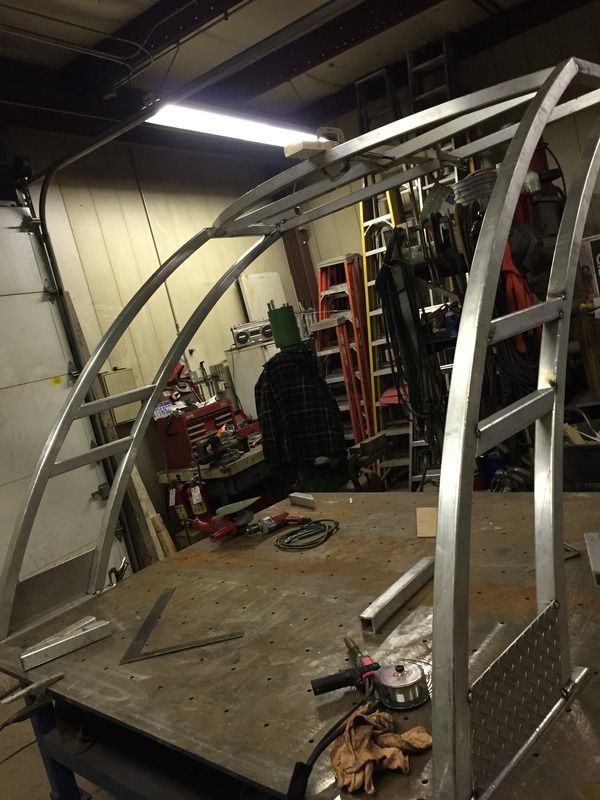

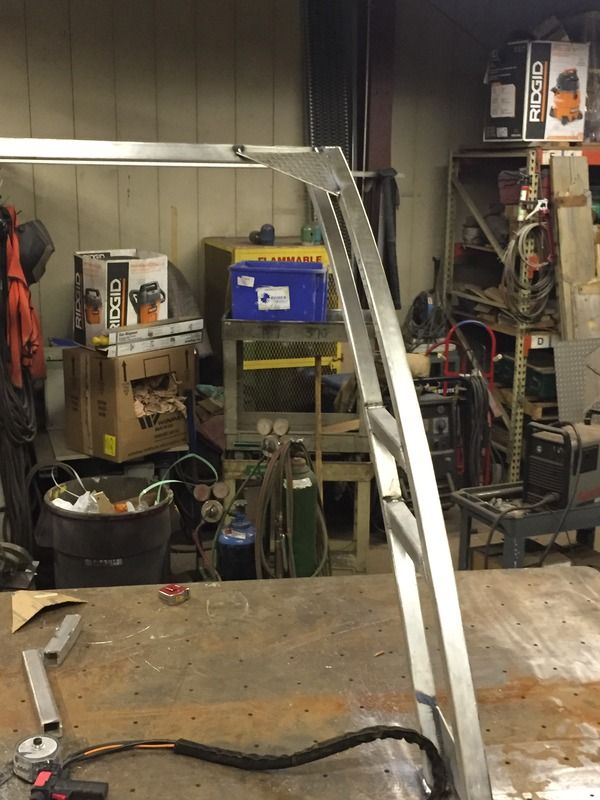

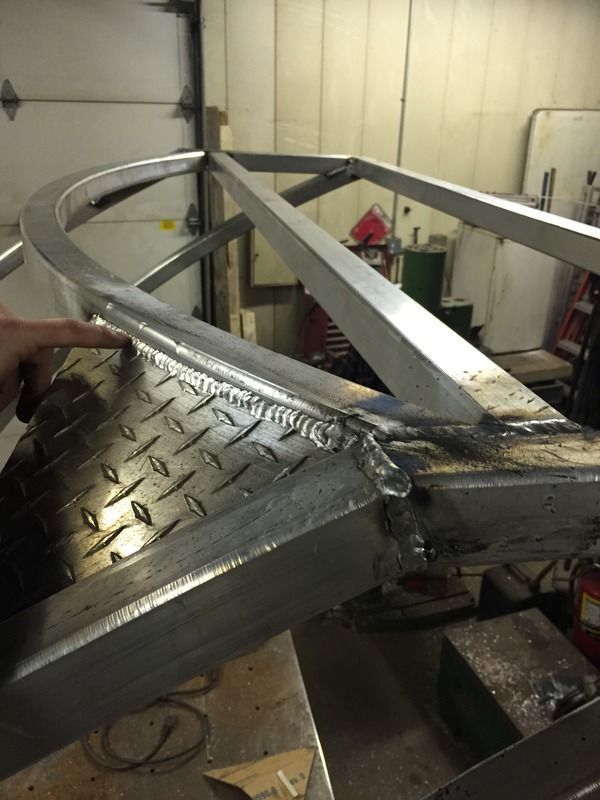

This picture shows some tread plate we used for side to side stability. We will plasma cut a radius into the plate to match the curves of the tower as well:
http://i2.photobucket.com/albums/y16...6/IMG_2004.jpg
http://i2.photobucket.com/albums/y16...6/IMG_2019.jpg

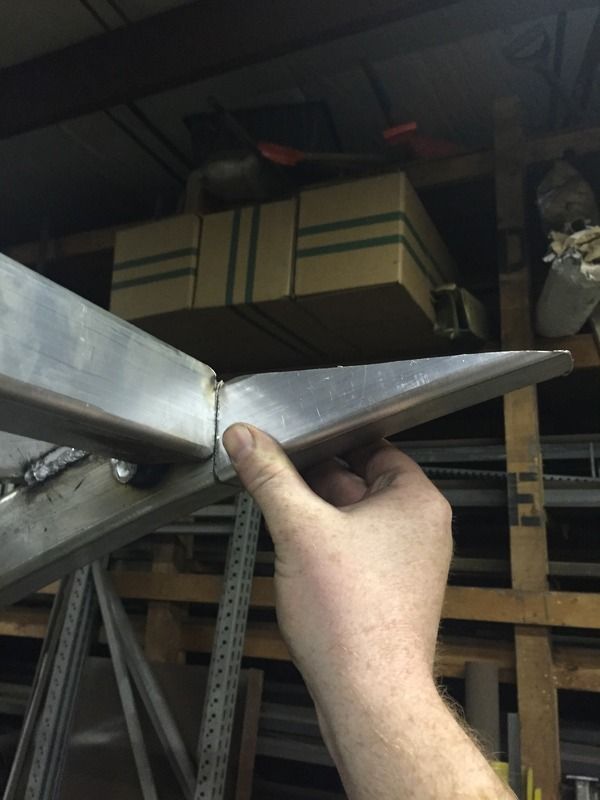

These are the "nose pieces" I will be adding to the front. A piece of the aluminum tread plate will be welded in here and cut with a curve as well. This will give the front of the tower some depth and allow it to match the curve of the rear hoop.
http://i2.photobucket.com/albums/y16...6/IMG_2023.jpg
The tower will be painted purple to match the boat since I already have a bunch of purple paint. I will build a bimini tower at some point in the near future but I am not worried about that at the moment, I'd like to get the boat back together and in the water first.
That tower looks like it is going to be very solid.
Looking good, Luke. This will probably be one of the best looking DIY towers I've seen on the net.
Quote:
Originally Posted by flipz96
Quote:
Originally Posted by Okie Boarder
Thanks guys. I am really excited for the final product! I hope it looks as good as I am envisioning. I hope to have it fully welded by the end of Saturday or sunday.
It is Tuesday…. ;-)
Ha, I got the tower completed last Friday! Just have been too lazy to update this thread. Painting the tower and top half of the boat this saturdayQuote:
Originally Posted by jasun
I was able to paint the top of the boat this Saturday, and it turned out great. I was unable to finish the tower last week due to work, but I can spray that one evening pretty soon without much hassle.
Here is a close-up of one of the gussets with round tubing on the tower:
http://i2.photobucket.com/albums/y16...h/IMG_2068.jpg
Top of the boat before paint:
http://i2.photobucket.com/albums/y16...h/IMG_2137.jpg
After the first dusting of purple:
http://i2.photobucket.com/albums/y16...h/IMG_2141.jpg
After the purple and white were layed:
http://i2.photobucket.com/albums/y16...h/IMG_2142.jpg
